Features & Specifications

  • Features a heavy-duty moisture separator with manual drain for removal of trapped moisture and condensed oil
  • Completely self-contained and packaged in a construction skid with a lifting bail and expanded metal heat exchanger guard
  • Boss outlet fitting (Boss 28) and inlet fittings (1-1/2 in. Pipe) are standard
  • DC fan motor is run from the compressor battery and automatically starts when the system is pressurized
  • 13-foot power cord with alligator clips to connect to the compressor starting battery
  • Optional 1-micron coalescing filter available
  • Adaptable stand-alone or tongue-mount design
  • Compact installation does not interfere with vehicle tailgates, etc.
  • Cools air to within 20° of ambient temperature to optimize moisture
  • Length: 24 in. (610 mm)
  • Width: 44 in. (1118 mm)
  • Height: 30 in. (762 mm)
  • Weight: 170 lbs. (77 kg)
  • Fan Power Requirments 9 A, 24 VDC
  • Max Working Pressure: 200 psi (13.9 bar)
  • Max Air Compressor Flow Rate: 400 cfm (11 M³/Min)
  • Air Hose Connections: Output: Boss 28, Input: 1-1/2 in. Pipe

Related Products

14 AWG 7 Strand RHH/RHW/USE-2XLP Electrical Wire, Black
Part#: 500-310047
14 AWG 7 Strand RHH/RHW/USE-2XLP Electrical Wire, Black

Electrical Wire, 14 AWG, XLP USE-2/RHH/RHW, 600V, Stranded, Copper, Black, 2500' Reel, Price Per Ft

Price: RFQ

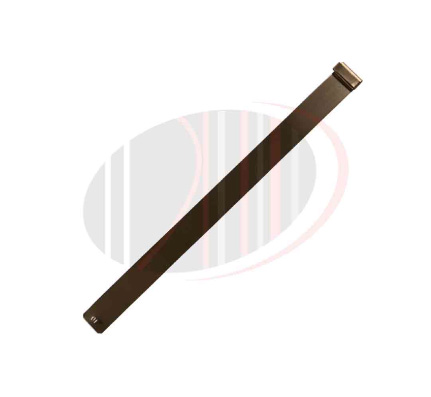

10″ Lashing Strap, Stainless Steel
Part#: 600-100034
10″ Lashing Strap, Stainless Steel

10" Stainless Steel Lashing Strap, Pack of 500, price per each

Price: RFQ
5/8″ 3-Hole Suspension Clamp for 1/4″ to 7/16″ Strand, Curved
Part#: 600-100013
5/8″ 3-Hole Suspension Clamp for 1/4″ to 7/16″ Strand, Curved

Corner Suspension Clamp, 5/8" Hole, Curved/Angled, Plates size 1-11/16" x 7-1/4", fits 1/4"-7/16" Strand, price ea

Price: RFQ

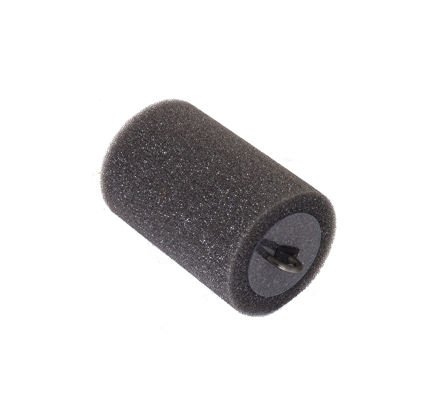

1.5″ – 2.00″ Duct Projectile
