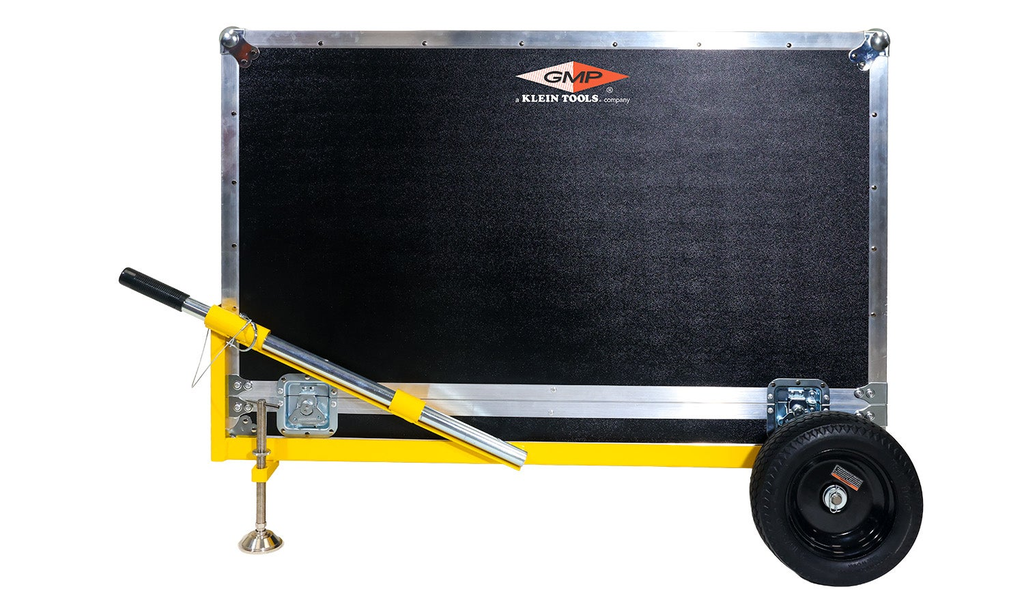

The GMP Tools Tornado Cable Blowing Machine measures 42 inches in length and supports fiber optic cables with outer diameters ranging from 0.24 to 1.34 inches (6 to 34 mm), handling up to 3,456 fibers. It delivers a pushing force of up to 220 lbs and a speed of 0 300 ft/min, utilizing a hydraulic drive system operating at pressures up to 1,670 psi. Designed for precise cable installation, it features electronic monitoring of speed, distance, and cable protection, along with a 30 tilting frame to minimize cable bending. Included with the Plus and Max models is the Klein Tools MODboxTM Mobile Workstation, a durable, IP65-rated case that safeguards accessories and allows for stacked storage. The machine s pneumatic system requires an air supply filtered and cooled to 175 psi, supporting various sub-duct sizes from 1 2 to 2 inches in diameter. Additionally, retractable handles and adjustable legs provide transport ease and stability, while ergonomic options include either a standard cart or a protective flat cart. This equipment is optimized for fiber optic and microduct installations with consistent reliability and efficiency.
